Bench Spot Welder
Bench Spot Welder Features
1. Power supply is mid-frequency direct current.
2. Suitable for high precision welding of small size metal workpieces.
3. Welder body is made of aluminium profile, which is strong, firm and good looking.
Industries
Battery, Wire Hardness, Electrical Appliance, Motor and Coil, etc.
Manufacturing and Repairing

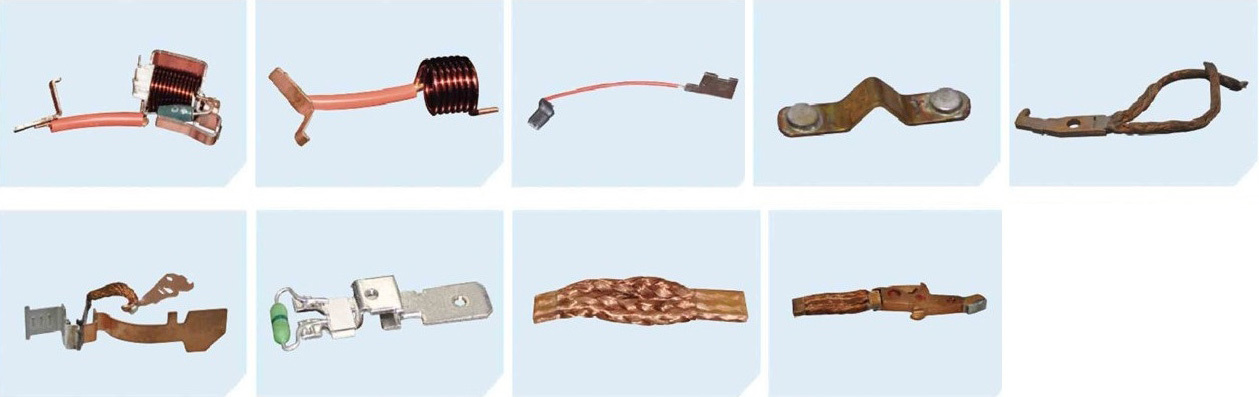

Welded products
Specification and parameters
|
|
Items \ Model |
unit |
HFDB-50B |
|
1 |
Rated capacity |
KVA |
80 |
|
2 |
Power supply |
V/Ø/Hz |
380V±10% / 3 phases / 50Hz |
|
3 |
Rated duty cycle |
% |
25% |
|
4 |
Primary current Max. |
A |
45 |
|
5 |
Primary cable |
mm2 |
3*16+2*16 |
|
6 |
Short-circuit current Max. |
KA |
18 |
|
7 |
Secondary voltage |
V |
7 |
|
8 |
Secondary current Max. |
KA |
11 |
|
9 |
Secondary current constance |
KA |
2.4 |
|
10 |
Air pressure cylinder |
Ø*L |
Ø100*80 |
|
11 |
Working pressure Max. (0.5/10.5MPa) |
KN |
0.24 |
|
12 |
Cooling water demand |
/ |
0.2～0.3MPa,40 micron filtration, |
|
13 |
Cooling water consumption |
L/Min |
5 |
|
14 |
Working environment |
mm |
temperature: 1～45℃ humidity: 35～90％ |
Key words：
Bench Spot Welder
