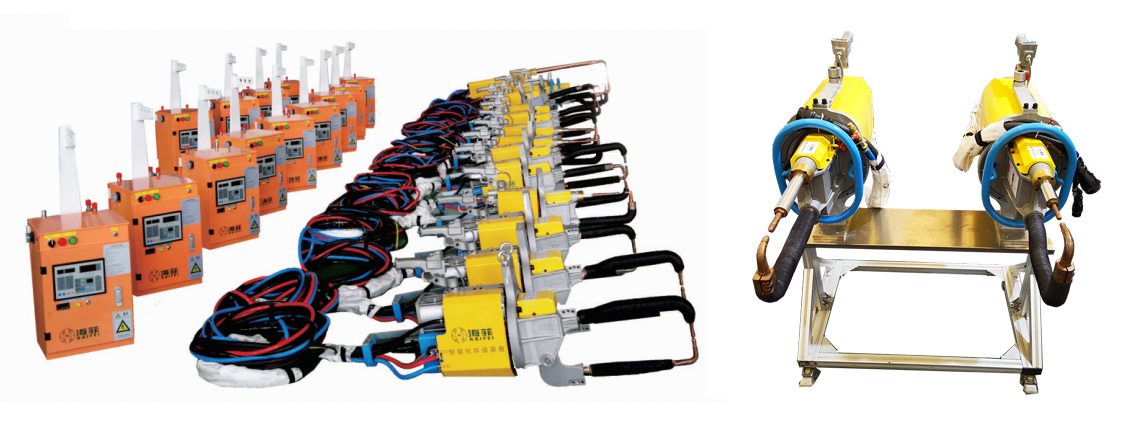

Handheld Portable Welding Gun
Handheld Portable Welding Gun is mainly used for steel or alloy parts welding in automotive, hardware, archtecture industries.
1. Impact structure with built-in transformer.
2. Weld spot locations can be manually determined.
3. The welding action is started by the signal sent by pressuring the button on the swift.
4. The gun body is made from aluminium alloy, light weight and durable.
5. Easy to control the gun movement.
6. Electrode pressure range: 250 - 600 kg
Industries
Automotive, Aerospace, Architecture and Construction, Hardware, etc.
Manufacturing and Repairing
Get a quote
Specification and parameters
|
|
Items \ Model |
unit |
SG-16X |
SG-25X |
SG-36X |
SG-25C |
SG-36C |
|
1 |
Rated capacity |
KVA |
16 |
25 |
36 |
25 |
36 |
|
2 |
Power supply |
V/Ø/Hz |
380V±10% / 3 phases / 50Hz |
||||
|
3 |
Rated duty cycle |
% |
50% |
50% |
50% |
50% |
50% |
|
4 |
Primary cable area |
mm2 |
12 |
20 |
25 |
20 |
25 |
|
5 |
Short-circuit current Max. |
KA |
12000 |
15500 |
18300 |
15500 |
18300 |
|
6 |
No load voltage |
V |
4.2 |
5.6 |
6.3 |
5.6 |
6.3 |
|
7 |
Cooling water demand |
/ |
0.2～0.3MPa,40 micron filtration, Resistivity of 5 kΩ. cm |
||||
|
8 |
Cooling water consumption |
L/Min |
20 |
25 |
30 |
25 |
30 |
|
9 |
Weight |
KG |
50-70 |
70-90 |
80-150 |
70-80 |
80-150 |
|
10 |
Working environment |
|
temperature: 1～45℃ humidity: 35～90％ |
||||
