Diffusion Welder for Aluminium
Weldable metals
Aluminium sheet, aluminium foil, alloy, aluminium plus aluminium, aluminium plus nickel, aluminium plus tin, etc
Industries
Electric Power, battery, new energy storage, new energy vehicles and other industries
Wire harness and connector for aluminium bar, busbar, aluminium flexible connection, aluminium braided wire, etc.

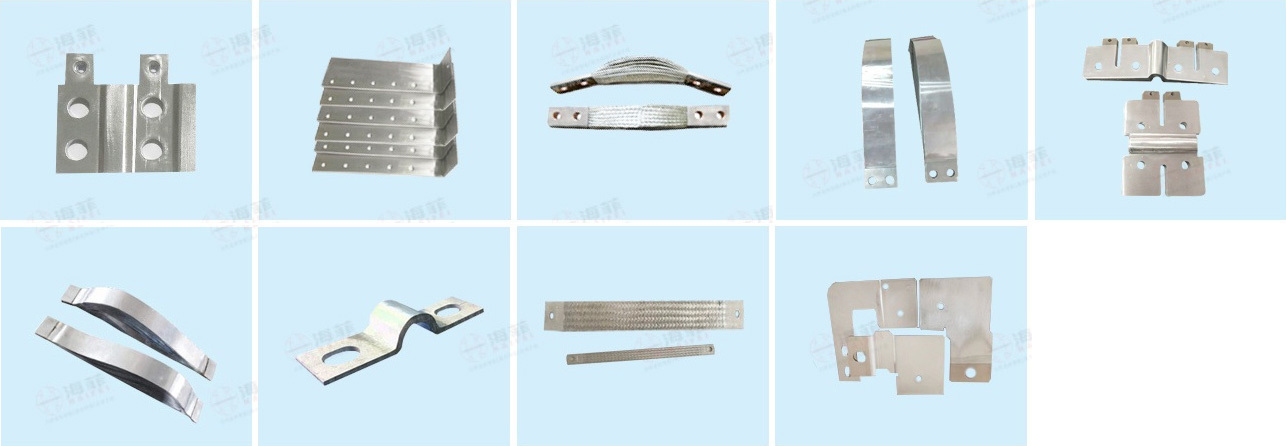

Welded products
Specification and parameters
|
|
Items \ Model |
unit |
HFTD-100-QY |
HFTD-200-Y |
|
1 |
Rated capacity |
KVA |
100 |
200 |
|
2 |
Power supply |
V/Ø/Hz |
380V±10% / 3 phases / 50Hz |
|
|
3 |
Rated duty cycle |
% |
50% |
50% |
|
4 |
Primary current Max. |
A |
100 |
200 |
|
5 |
Primary cable |
mm2 |
3*35+2*16 |
3*50+2*16 |
|
6 |
Short-circuit current Max. |
KA |
80 |
160 |
|
7 |
Secondary voltage |
V |
21 |
21 |
|
8 |
Air pressure cylinder |
Ø*L |
Ø100*80 |
/ |
|
9 |
Hydraulic cylinder |
Ø*L |
/ |
Ø100*100 |
|
10 |
Working pressure Max. (0.5/10.5MPa) |
KN |
50 |
100 |
|
11 |
Cooling water demand |
/ |
0.2～0.3MPa,40 micron filtration, |
|
|
12 |
Cooling water consumption |
L/Min |
100 |
150 |
|
13 |
Throat depth |
mm |
270 |
270 |
|
14 |
Distance between copper plates |
mm |
180 |
180 |
|
15 |
Working environment |
mm |
temperature: 1～45℃ humidity: 35～90％ |
|
