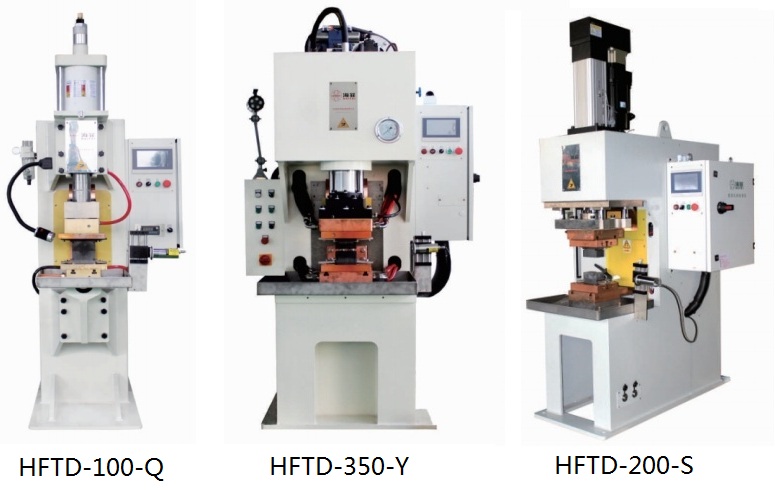

Diffusion Welder for Copper
Weldable metals
Copper sheet, copper foil, copper plus aluminium, copper plus nickel, copper plus tin, etc
Industries
Electric Power, battery, new energy storage, new energy vehicles and other industries
Wire harness and connector for copper bar, busbar, copper flexible connection, copper braided wire, etc.
Welded products
Specification and parameters
|
|
Items \ Model |
unit |
HFTD-100-Q |
HFTD-150-QY |
HFTD-200-Y |
HFTD-350-Y |
HFTD-600-Y |
|
1 |
Rated capacity |
KVA |
100 |
150 |
200 |
350 |
600 |
|
2 |
Power supply |
V/Ø/Hz |
380V±10% / 3 phases / 50Hz |
||||
|
3 |
Rated duty cycle |
% |
50% |
50% |
100% |
100% |
100% |
|
4 |
Primary current Max. |
A |
100 |
200 |
300 |
400 |
800 |
|
5 |
Primary cable |
mm2 |
3*25+2*16 |
3*30+2*16 |
3*50+2*16 |
3*70+2*16 |
3*150+2*16 |
|
6 |
Short-circuit current Max. |
KA |
35 |
40 |
42 |
58 |
100 |
|
7 |
Secondary voltage |
V |
9 |
9.7 |
10.4 |
13.8 |
13.8 |
|
8 |
Air pressure cylinder |
Ø*L |
Ø160*120/ |
/ |
/ |
/ |
/ |
|
9 |
Hydraulic cylinder |
Ø*L |
/ |
/ |
Ø120*250 |
Ø120*250 |
Ø120*250 |
|
10 |
Working pressure Max. (0.5/10.5MPa) |
KN |
80 |
100 |
160 |
200/400 |
200/400 |
|
11 |
Cooling water demand |
/ |
0.2～0.3MPa,40 micron filtration, Resistivity of 5 kΩ. cm |
||||
|
12 |
Cooling water consumption |
L/Min |
25 |
40 |
150 |
240 |
400 |
|
13 |
Throat depth |
mm |
425 |
320 |
320 |
320 |
320 |
|
14 |
Distance between copper plates |
mm |
248 |
267 |
340 |
340 |
340 |
|
15 |
Working environment |
|
temperature: 1～45℃ humidity: 35～90％ |
||||
